CATERPILLAR 988h лизинг

1. * * Operating weight of the whole machine * *: 50144kg (50.14 tons) H-CPC

2. * * Rated payload * *: 11.4 tons Truck Home

3. Bucket capacity: Standard rock bucket 6.3-7.0m ³, maximum 7.0m ³

4. * * Static tipping load

-Linear tipping: 38119kg

-Articulated 37 ° tilt: 33487kgH-CPC

5. * * Overall dimensions of the machine

-Total length: 12294mm

-Total height of the cab: 4128mmH-CPC

6. * * Steering * *: Articulated, with a total steering angle of 74 °; The rear axle can swing ± 13 °, and the maximum lifting and lowering of a single wheel is 568mmHg CPC

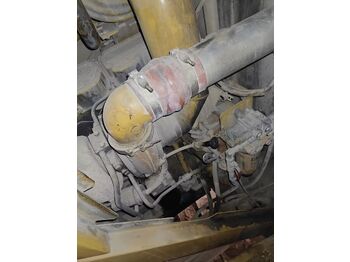

##2、 Power System Cat C18 ACERT inline six cylinder diesel engine

1. Cylinder diameter x stroke: 145mm x 183mm

2. Displacement: 18.1L

3. Power parameters (1800rpm)

-Total power of flywheel: 414kW (555 horsepower)

-ISO net power: 373kW (501 horsepower) H-CPC

4. Emission standards: Tier 3/National III

5. Heat dissipation: Hydraulic driven variable frequency fan, optional automatic reverse dust removal

##3、 Transmission and driving speed (4-speed planetary power shift)

###Torque converter mode

-Forward 1st gear: 6.7km/h; Forward 2nd gear: 11.8km/h; Forward 3rd gear: 20.8km/h; Forward 4th gear: 35.9km/h

-Backward 1st gear: 7.6km/h; Backward 2nd gear: 13.5km/h; Backward 3rd gear: 23.7km/h armored construction machine ..

###Locking direct transmission (high-speed and fuel-efficient)

-4th gear maximum speed: 38.6km/h Chinese road surface machine ..

##4、 Hydraulic system and working cycle

1. Main pump flow rate: 305L/min (rated speed) for armored engineering machines ..

2. Action cycle time

-Lifting: 9.4s

-Uninstalling: 2.4s

-Empty bucket descent: 3.8 seconds

-Three items and total cycle: 15.6s Chinese road machine ..

3. Bucket lifting force: 52971kg (SAE standard) H-CPC

##5、 Oil filling capacity

1. Fuel tank: 712L

2. Hydraulic oil tank: 267L armored engineering machine ..

##6、 Unloading height and distance (key parameters for loading)

-Maximum unloading height: 3.4m

-Maximum unloading extension distance: 2.0m
