We offer for sale a cryogenic tanker designed for the transport of LNG (UN 1972 – METHANE, refrigerated liquefied natural gas) from the ISISAN brand.

Technical specifications:

- Year of manufacture: 2018,

- Standards and design codes: EN 13530, ADR,

- Tank code: R10.4 BN,

- Test pressure: 10.4 bar,

- Maximum operating pressure: 7 bar,

- Tank capacity: 49,400 l,

- Design temperature: –196°C,

- Inner tank material: stainless steel,

- Outer tank material: stainless steel,

- Tank insulation: vacuum (thermal) insulation.

Weights and dimensions:

- maximum gross vehicle weight: 35,000 kg,

- permissible gross vehicle weight: 35,000 kg,

- vehicle curb weight: 13,900 kg,

- permissible payload: 21,100 kg,

- maximum permissible axle load: 78.40 kN.

Axles and suspension:

- number of axles: 3,

- suspension: air,

- EBS system,

- aluminum rims,

Equipment:

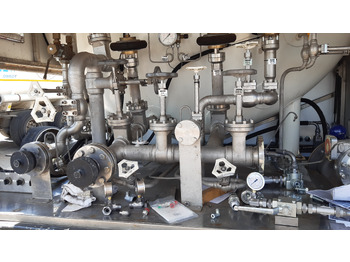

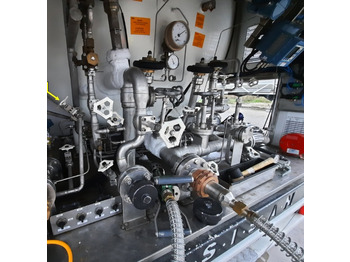

- final connections for loading, unloading, and the gas phase,

- evaporator,

- hydraulically driven pump,

- EMERSON measuring system.

Documentation:

- ADR certificate,

- registration certificate,

- TDT report,

- TPED 2010/35/EU certificate/declaration,

- measuring system calibration certificate.

For any questions, please contact Piotr at 506 571 635.
