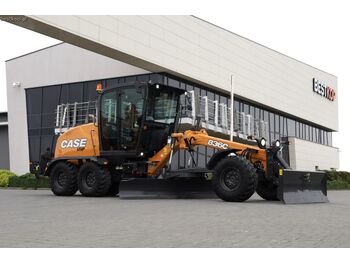

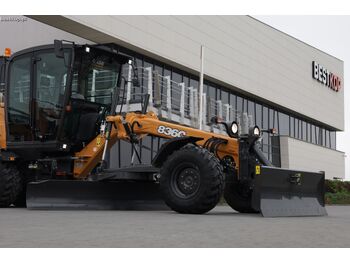

Грейдер CASE 836C AWD

CASE 836C AWD

Price: 228,500 € without tax

Year of manufacture: 2024

Mileage ONLY: 15 hours

Weight: 12,800 kg

6-cylinder engine with 119 kW

MANUFACTURER'S WARRANTY: 12 MONTHS OR 2,000 HOURS

We also offer a model controlled by joysticks

CASE 836C (AWD) Grader Technical Specifications

Drivetrain:

NEF diesel, 6-cylinder, type FPT F67 NEF STAGE V, common rail, turbocharged, intercooled, 6.7 l, meeting the latest Stage V "Hi-eSCR2" emissions standard; patented selective catalytic reduction system with AdBlue

Power in gears 1-3: 102 kW (138 hp) according to ISO 14396/ECE R120; Power in gears 4-6: 115 kW (156 HP) according to ISO 14396/ECE R120;

Torque: 725 Nm at 1,400 rpm;

Full PowerShift transmission for shifting under load;

Number of forward gears: 6 (Vmax = 39.9 km/h);

Number of reverse gears: 3 (Vmax = 29.2 km/h);

Torque converter with a gear ratio of 1.87:1;

Tractive force: 85 kN

Hydraulic system:

▪ Variable-flow axial piston pump, maximum capacity: 94.5 l/min;

▪ Closed-loop load-sensing system with a pressure of 200 bar enables very high precision;

▪ System capacity: 185 l;

All-wheel drive:

Hydrostatic front-wheel drive with E.D.C.V. (Electronic Drive Control Volume) system, engaged in addition to the hydrodynamic rear-wheel drive. A bidirectional pump controls the motors located in the front wheel hubs. A hydraulic No-Spin differential regulates torque and prevents wheel spin. A microprocessor monitors and matches the drive power between the front and rear wheels. A stepless switch allows the operator to adjust the front wheel traction to current operating conditions. Standard creep mode: front-wheel drive only for maintaining very low travel speeds.

▪ Hydraulically controlled steering system;

▪ Turning radius (at the edge of the wheels) – 6.6 m;

▪ Six equal-size wheels with 405/70 R20 tires;

▪ Wet disc braking system acting on all four rear wheels;

▪ Front drive axle (6WD):

▪ Hydrostatic front wheel drive controlled by an electronic speed control system (EDCV); Axle oscillation - ± 15°;

Wheel tilt - ± 21.45°; Left/right steering angle - ± 40°;

Frame angle - ± 28°; Ground clearance - 0.485 m;

▪ Tandem rear axle:

Axle oscillation - ± 15°;

No-spin automatic differential lock;

4-wheel drive via chains;

Slewing ring:

▪ 360° rotation capability;

▪ Slewing ring diameter - 1.15 m;

▪ Enclosed slewing ring with internal lubrication of the slewing bearing, preventing contamination;

Electrical system and cab:

▪ Voltage: 24 V;

▪ Alternator: 90 A;

▪ Battery: 2 x 100 Ah;

▪ Cold start system for easy engine starting in low temperatures;

▪ Spacious, comfortable ROPS/FOPS cab equipped with air conditioning, work lights, adjustable steering column; comfortable, fully adjustable operator's seat; doors on both sides;

Operating parameters:

▪ Rear-mounted ripper;

Ripper width: 2.0 m;

Working depth: 0.361 m;

▪ Parallel-lift front blade;

Width: 2.35 m;

Height: 0.765 m;

Ground clearance under blade: 0.509 m;

Working depth – 0.136 m;

▪ Center blade;

Width – 3.355 m;

Height – 0.526 m;

Working depth – 0.456 m;

Blade clearance – 0.394;

Tilt angle – 49.5°;

Traverse left – 0.708 m;

Traverse right – 0.491 m;

Reach left without frame steering – 1.525 m;

Reach right without frame steering – 1.865 m;

Reach left with frame steering – 2.15 m;

Reach right with frame steering – 2.49 m;

Lift angle left – 76°;

Lift angle right – 117°;

▪ Machine weight ready for operation – 12,800 kg;

▪ Height – 3.24 m;

▪ Maximum length – 8.961 m;

▪ Width – 2.36 m (over tires);

Additional equipment included in the price:

▪ Heated FOPS/ROPS cab with air conditioning

▪ Comfortable, heated, air-suspended operator's seat

▪ All-wheel drive (AWD) 6x6

▪ Parallel front blade

▪ Center blade 3355 mm wide and 522 mm high - FLOATING

▪ 5-tooth rear ripper

▪ Back-up alarm

▪ Lighting for driving on public roads

▪ LED work lights

▪ Orange warning light

▪ Back-up camera

Price: 228,500 € without tax
