Автоманипулятор FASSI F 80.A22 Ladekran, Kran, FASSI crane

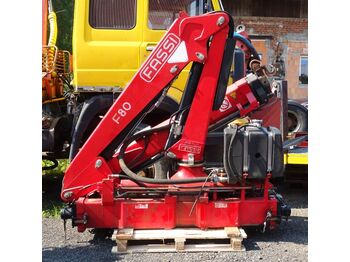

Used loading crane FASSI F 80.A22 year 2009, lifting category 8 tonm, crane with both-sides manual lever controls and 1 extra function for rotator or grab. Light crane suitable also for smaller trucks for example 11,99 ton GVW category.

2 times hydraulic extensions to max. 7,4 m horizontally (vertically ca. 10,3 m), 1 extra function activated for grab or rotator with hoses and pipes fixed to end of hydraulic extension, manually horizontally extendable stabilizers with basic 3,365 m extension, both hydraulic stabilizer cylinders tiltable up to 180°. Lifting capacity : 3650kg/2m 3295kg/2,25m 2030kg/3,8m 1740kg/4,4m 1370kg/5,5m 1010kg/7,25m. Slewing angle 370°, folded crane with dimensions ca. 2200 x 880 x h.1970 mm, crane´s weight ca. 1110 kg. Oil flow recomm. 20 l/min, working pressure 30 MPa. Oil tank 60 l in price.

For disposal more videos from testing of crane before dismantle from truck.

Price netto valid for export only.

With extra price is small used 4-fingers grab (Mehrschalengreifer) for the crane also available (suitable for small scrap handlers for example), measures diam. 800 x height 600 mm, suspension ca. 250 mm. Volume ca. 120 - 140 l.

In case of questions please contact us on phone +420 602 101 513. WhatsApp possible..
